China TGW-SG008 Luxury Smart Automatic Pedestrian Swing Channel Gate

  • 1 - 9 Sets
    $2,000.00
  • 10 - 29 Sets
    $1,799.00
  • >=30 Sets
    $1,499.00
Type:
Smartphone Card CODE Face fingerprint
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 5 15 25 Negotiable
Customization:
Customized logo (Min. Order: 20 Sets)
Customized packaging (Min. Order: 20 Sets)

More

Graphic customization (Min. Order: 20 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
TGW
Model Number:
TGW-SG008
Special Features:
Time & Attendance, Touch Screen, Waterproof / Weatherproof
Framework:
304 Stainless Steel

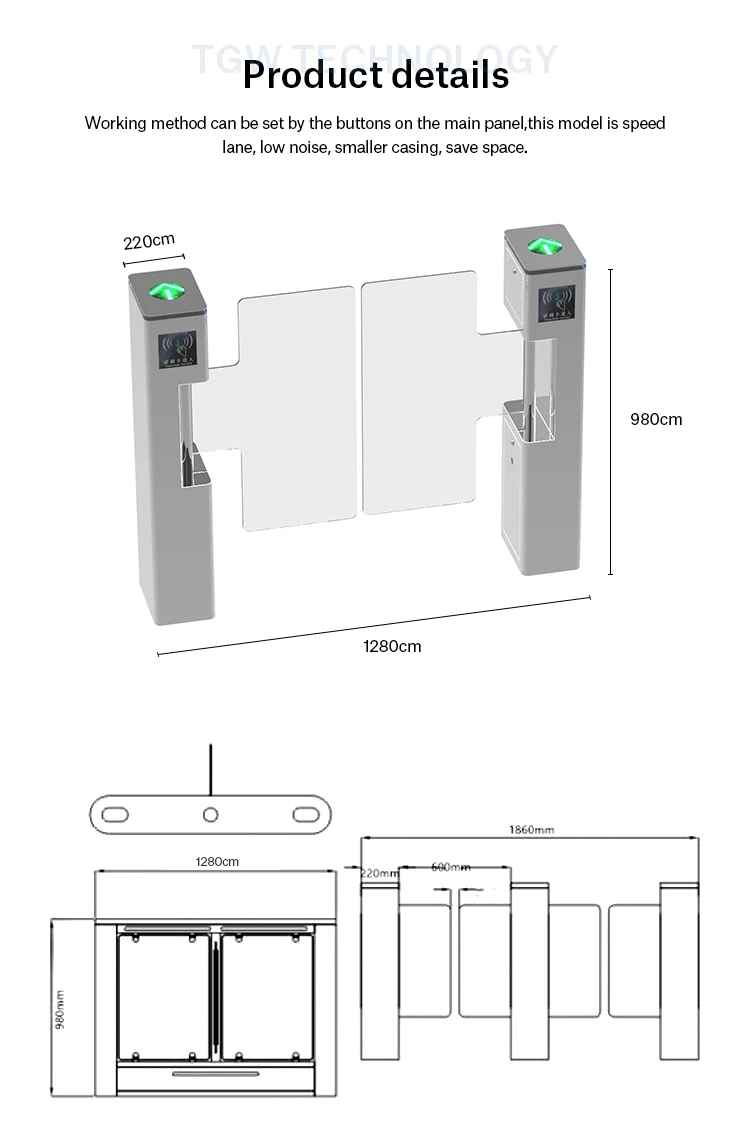

Dimensions:
1280*220*980mm
Weight:
90KG
Arm Length:
200-350mm
Passage Length:
550-700mm
Dry Contact:
12V
LED indicating light:
Three
Card-reading window:
Two
Rated power:
120W
Operating temperature:
-25℃ ~ +60℃, RH ≤90%
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Every speed gate with rfid reader will be wrapped with waterproof film and then will be put in a export carton box.
Port
Shenzhen, Guangzhou, Hong Kong
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 5 15 25 To be negotiated
Product Information
Model No.
TGW-SG008
Framework
304 Stainless Steel
Dimensions
1280*220*980mm
Weight
90KG
Arm Length
200-350mm
Passage Width
550-700mm
Dry Contact
12V
Card-reading Window
Two
LED indicating light
Three
Rated power
120W
Operating Temperature
-25℃ ~ +60℃, RH ≤90%
Related Humidity
≥90%RH
Power Supply
AC 220V/110V ±10% 50/60MHZ (optional)
Opening Speed
30-45persons per minute
Closing Speed
25-35per minute
FAQ
Q: Did your system have software interface?
A: Yes. We have our own management software.

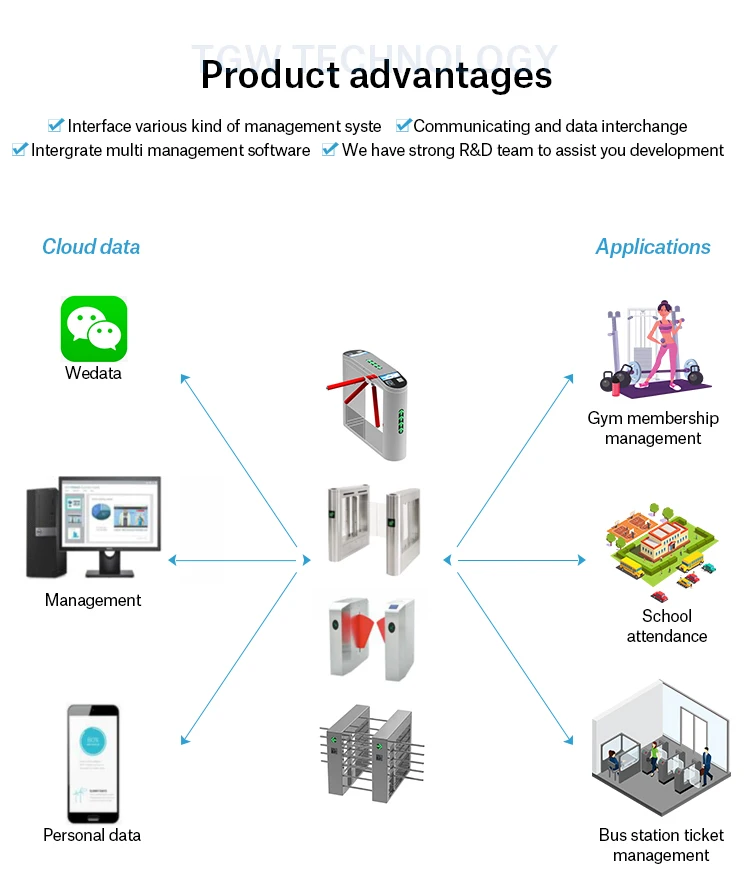

Q: How does this system link to other system?
A: Equipment could link to others by TCP/IP.

Q:Does this combo can add extra access control method?
A: Yes,we can extend card reader,fingerprint reader and other method to connect wire with face recognition terminal.

Q: What will happened if power was cut off?
A: Once cut off,the turnstile gates arm would be drop off,it can go through without control.

Q: Is it diffcult to install it?
A: Its easy to install and we will offer the installation video.
